PostPosted: Wed May 18, 2011 12:02 am    Post subject: Brenda's Feet -PHEW!!!!!!!!!  Reply with quote

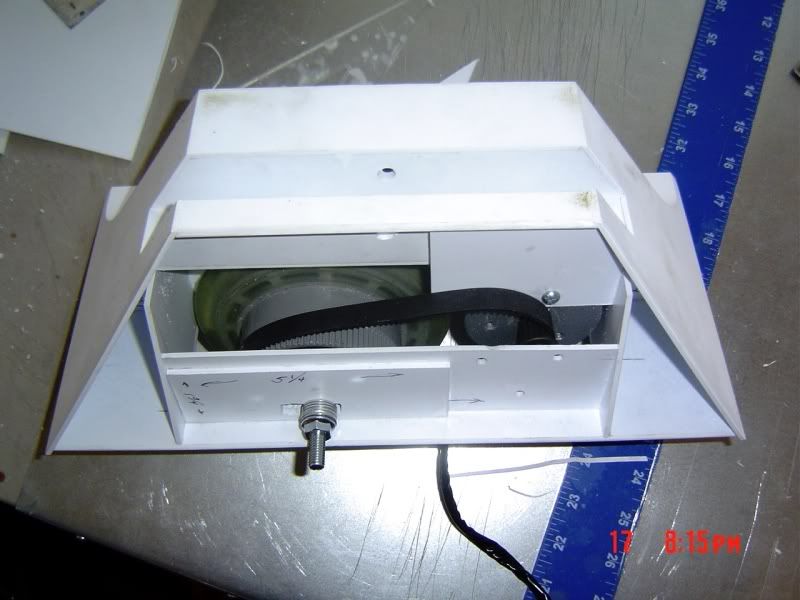

Here's a couple of pics showing how we modified Dave's Feet to hold the Scooter Motors.
Still not finished, But getting closer.
Calvin





Back to top
View user's profile Send private message Send e-mail Visit poster's website
Blsith



Joined: 24 Aug 2010
Posts: 191

PostPosted: Wed May 18, 2011 1:01 am    Post subject: Reply with quote

Looks great!

I'm going to be starting my feet next month, so I'm going to be paying extra special attention to how yours turn out
Very Happy
_________________
Brian Lube - R4-P17 -  Member of the Southern R2 Builders  -  [URL=http://r4-p17.blogspot.com][/URL]
Back to top
View user's profile Send private message AIM Address
admin
Site Admin


Joined: 23 Aug 2010
Posts: 330
Location: Jacksonville, Florida

PostPosted: Fri May 20, 2011 1:23 am    Post subject: Reply with quote

Thanks Brian,
Here's another photo with the motor and wheels installed.



Just a few more things to do and it's finished.
I took allot of pictures with measurements and I'll do a Tutorial when I know it works perfect.
Calvin
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Blsith



Joined: 24 Aug 2010
Posts: 191

PostPosted: Tue May 24, 2011 5:48 pm    Post subject: Reply with quote

I know you said you had a lot of pictures on the build, but I had one thought process question - how you are handling the tension on the band?  I don't see a tensioner setup, the best I can see is that you made the mount for the motor to be adjustable in order to fix the tension...
_________________
Brian Lube - R4-P17 -  Member of the Southern R2 Builders  -  [URL=http://r4-p17.blogspot.com][/URL]
Back to top
View user's profile Send private message AIM Address
admin
Site Admin


Joined: 23 Aug 2010
Posts: 330
Location: Jacksonville, Florida

PostPosted: Tue May 24, 2011 7:01 pm    Post subject: Reply with quote

I have a Banjo style bolt that will fit on each side of the axle.
These will allow me to adjust the belt and keep the wheel straight.
A Banjo bolt is like a washer with a screw welded on the side.
It's used in many different types of bikes to adjust the chain or belt.
Calvin
Back to top
View user's profile Send private message Send e-mail Visit poster's website
admin
Site Admin


Joined: 23 Aug 2010
Posts: 330
Location: Jacksonville, Florida

PostPosted: Tue May 24, 2011 11:21 pm    Post subject: Reply with quote

Just fitted the Banjo bolts and this idea failed.
So I started working on a slide plate for the axle and it works good so far.
The belt is on order, So I won't be able to test until it arrives.
Calvin
Back to top
View user's profile Send private message Send e-mail Visit poster's website
admin
Site Admin


Joined: 23 Aug 2010
Posts: 330
Location: Jacksonville, Florida

PostPosted: Sat May 28, 2011 10:07 pm    Post subject: Reply with quote

Here's another preview of Old Stinky Feet.
Motor is bolted, Wheel is shimmed but I need a longer Axle Bolt so I can fit the Belt Tension Slide.

If this Video does not work let me know.
Calvin

Back to top
View user's profile Send private message Send e-mail Visit poster's website
BLT2100



Joined: 24 Aug 2010
Posts: 103
Location: Jacksonville, Florida

PostPosted: Sat May 28, 2011 11:43 pm    Post subject: Reply with quote

Hey!!!!!!!! Quit calling me stinky feet!!!!!!! Old man!!!!!! You better smell your own before you talk about mine!!! And thank God we got this done, He's been driving me crazy all day. I spent the whole day helping him work on this LOL!!!!
